OLED屏幕

OLED即有机发光管(Organic Light-Emitting Diode,OLED)。OLED显示技术具有自发光、广视角、几乎无穷高的对比度、较低功耗、极高反应速度、可用于绕曲性面板、使用温度范围广、构造及制程简单等有点，被认为是下一代的平面显示屏新兴应用技术。

OLED显示和传统的LCD显示不同，其可以自发光，所以不需要背光灯，这使得OLED显示屏相对于LCD显示屏尺寸更薄，同时显示效果更优。

常用的OLED屏幕有蓝色、黄色、白色等几种。屏的大小为0.96寸，像素点为128*64，所以我们称为0.96oled屏或者12864屏。

OLED屏幕特点

1.模块尺寸：23.7 *23.8mm
2.电源电压：3.3-5.5V
3.驱动芯片：SSD1306
4.测试平台：提供 k60/k10,9s12XS128,51,stm32，stm8等单片机

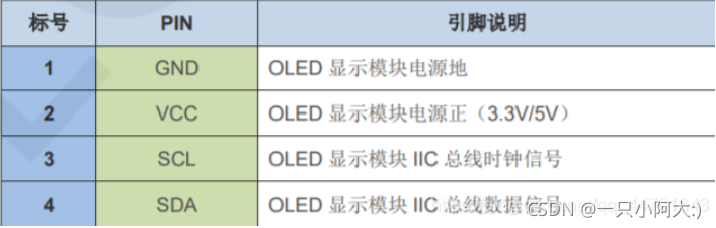

OLED屏幕接线说明

在这里插入图片描述

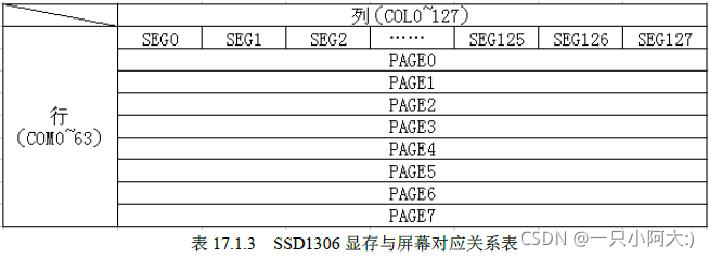

OLED屏幕显存

在这里插入图片描述
OLED本身是没有显存的，他的现存是依赖SSD1306提供的，而SSD1306提供一块显存。

SSD1306显存总共为128*64bit大小，SSD1306将这些显存分成了8页。每页包含了128个字节。

OLED屏幕原理

STM32内部建立一个缓存(共128*8个字节），每次修改的时候，只是修改STM32上的缓存(实际上就是SRAM)，修改完后一次性把STM32上的缓存数据写入到OLED的GRAM。

这个方法也有坏处，对于SRAM很小的单片机（51系列）就比较麻烦。

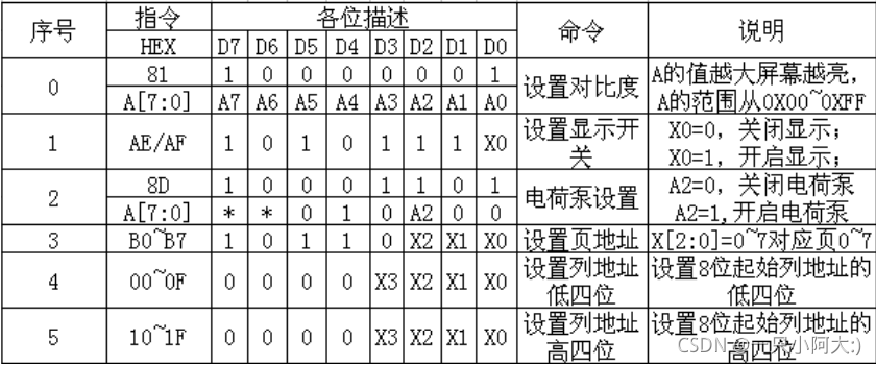

OLED屏幕常用指令

在这里插入图片描述
命令0X81: 设置对比度。包含两个字节，第一个0X81为命令，随后方法是的一个字节要设置这个对比度，值越大屏幕越亮。

命令0XAE/0XAF: 0XAE为关闭显示命令，0XAF为开启显示命令

0X8D: 包含两个字节，第一个为命令字，第二个为设置值，第二个字节的BIT2表示电荷泵的开关状态，该位为1开启电荷泵，为0则关闭。模块初始化的时候，这个必须要开启，否则看不到屏幕显示。

命令0XB0~B7:用于设置页地址，其低三位的值对应GRAM页地址。

命令0X00~0X0F：用于设置显示时的起始列地址低四位。

命令0X10~0X1F: 用于设置显示时的起始列地址高四位。

OLED屏幕字模软件的使用

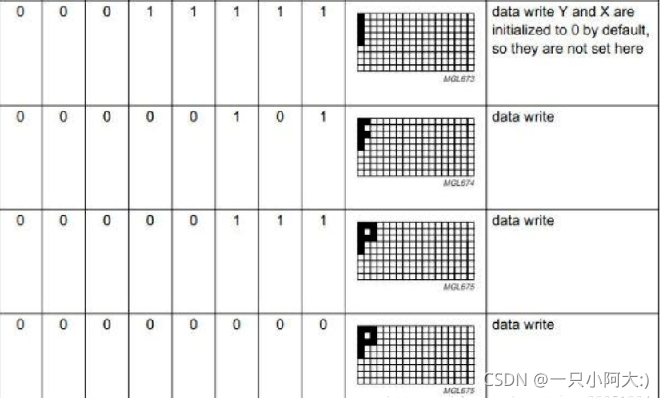

OLED点阵的点亮方式，举个显示”P”的例子，最左边位最高位P7。
在这里插入图片描述
1.可以看出，要想显示”P”，首先写入0x1f,则显示一个竖杠，之后控制器自动水平移动到下一列。

2.再写入0X05,则出现两个小横杆，这个两个横杆就是0X05中0000 0101中两个1所处的位置，写完第二列后，控制器自动跳到第三列.

3.再写入0X07,第四列写入0X00后，P就显示出来了。这也说明，即使你只想再一列的最上端显示一个小点，即写入0X01.

4.即你不能一次性控制一个点阵，只能一次性控制八位点阵，即一列点阵。这也决定了字模选择的取模方式为“列行式“。

代码

main.c

#include "stm32f10x.h"
#include "SysTick.h"
#include "oled.h"

int main()
{
		unsigned char i = 0;

		initSysTick();

		I2C_Config();
		OLED_Init();
		delay_ms(2000);

		OLED_Fill(0XFF);  //ÆÁÄ»ÁÁ
		delay_ms(2000);
		OLED_Fill(0X00);  //ÆÁÄ»Ãð
		delay_ms(2000);

//		OLED_ShowStr(0, 3, "Hello World", 1);
//		OLED_ShowStr(0, 4, "Hello World", 2);
		while (1)
		{
				for(i=0;i<3;i++)
				{
				    OLED_ShowLJJ(i*16, 0, i);

				}
		}
}

oled.h

#ifndef _OLED_H_
#define _OLED_H_

#include "stm32f10x.h"
#define OLED_ADDRESS 0x78

void I2C_Config(void);
void I2C_WriteByte(uint8_t addr,uint8_t data);
void I2C_WriteCmd(unsigned char I2C_Command);
void I2C_WriteData(unsigned char I2C_Data);
void OLED_Init(void);
void OLED_SetPos(unsigned char x,unsigned char y);
void OLED_Fill(unsigned char Fill_Data);
void OLED_CLS(void);
void OLED_ON(void);
void OLED_OFF(void);
void OLED_ShowStr(unsigned char x,unsigned y,unsigned char ch[],unsigned TextSize);
void OLED_ShowCN(unsigned char x,unsigned y,unsigned char N);
void OLED_ShowMouMou(unsigned char x,unsigned char y,unsigned char N);

#endif

oled.c

#include "stm32f10x.h"
#include "oled.h"
#include "delay.h"
#include "codetab.h"

/**
 *¹¦ÄÜ£ºI2CÅäÖÃ
 *²ÎÊý£ºvoid
 *·µ»ØÖµ£ºvoid
 */
void I2C_Config(void)
{
		GPIO_InitTypeDef GPIO_initStruct;
		I2C_InitTypeDef  I2C_initStruct;

	  RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOB ,  ENABLE);
		RCC_APB1PeriphClockCmd(RCC_APB1Periph_I2C1 ,  ENABLE);

		//PB6 -- SCL    PB7 -- SDA
		GPIO_initStruct.GPIO_Mode  = GPIO_Mode_AF_OD;
		GPIO_initStruct.GPIO_Pin   = GPIO_Pin_6 | GPIO_Pin_7;
		GPIO_initStruct.GPIO_Speed = GPIO_Speed_50MHz;
		GPIO_Init(GPIOB, &GPIO_initStruct);

		I2C_DeInit(I2C1);
		I2C_initStruct.I2C_Ack = I2C_Ack_Enable;                                //Ó¦´ðÊÇ·ñÊ¹ÄÜ
		I2C_initStruct.I2C_AcknowledgedAddress = I2C_AcknowledgedAddress_7bit;  //µØÖ·£¬Êý¾ÝÎ»ÊÇ¶àÉÙ£¬ÓÐ7bitºÍ10bit
		I2C_initStruct.I2C_ClockSpeed = 400000;                                 //Ê±ÖÓËÙ¶È 400Kb
	  I2C_initStruct.I2C_DutyCycle = I2C_DutyCycle_2;                         // 2:1 »òÕß16:9¶¼ÐÐ
		I2C_initStruct.I2C_Mode = I2C_Mode_I2C;                                 //Ä£Ê½I2CÄ£Ê½
		I2C_initStruct.I2C_OwnAddress1 = 0x30;                                  //Ö÷»úµØÖ·£¬0x30Ëæ±ã¸øµÄ
		I2C_Init(I2C1, &I2C_initStruct);
		I2C_Cmd(I2C1,  ENABLE);

}

/**
 *¹¦ÄÜ£ºI2CÐ´×Ö½Ú
 *²ÎÊý£ºaddr µØÖ·£¬data Êý¾Ý
 *·µ»ØÖµ£ºvoid
 */
/* ÎªÉ¶ÏÂÃæÃ»EV8_2¾ÍÖ±½Ó¹Ø±ÕÁË£¬ÓÐwhileÑ»·»áµÈ´ýÐ´Íê£¬ËùÒÔÃ»±ØÒª */
void I2C_WriteByte(uint8_t addr,uint8_t data)
{
		while( I2C_GetFlagStatus(I2C1, I2C_FLAG_BUSY));                                 //¼ì²éI2C×ÜÏßÊÇ·ñ·±Ã¦

		I2C_GenerateSTART( I2C1, ENABLE);                                               //¿ªÆôI2C1
		while( !I2C_CheckEvent( I2C1 , I2C_EVENT_MASTER_MODE_SELECT ));                 //EV5 Ö÷Ä£Ê½

		I2C_Send7bitAddress(I2C1, OLED_ADDRESS , I2C_Direction_Transmitter );           //·¢ËÍÆ÷¼þµØÖ·
		while( !I2C_CheckEvent( I2C1 , I2C_EVENT_MASTER_TRANSMITTER_MODE_SELECTED ));   //EV6

		I2C_SendData( I2C1 , addr );                                                    //¼Ä´æÆ÷µØÖ·
		while( !I2C_CheckEvent( I2C1 , I2C_EVENT_MASTER_BYTE_TRANSMITTING ));           //EV8

		I2C_SendData( I2C1 , data );                                                    //Òª·¢ËÍµÄÊý¾Ý
		while( !I2C_CheckEvent( I2C1 , I2C_EVENT_MASTER_BYTE_TRANSMITTING ));           //EV8

		I2C_GenerateSTOP( I2C1, ENABLE );                                               //¹Ø±ÕI2C×ÜÏß

}

/**
 *¹¦ÄÜ£ºÐ´ÃüÁî
 *²ÎÊý£ºI2C_Command ÐèÒªÐ´ÈëµÄÃüÁî
 *·µ»ØÖµ£ºvoid
 */
void WriteCmd(unsigned char I2C_Command)
{
		I2C_WriteByte(0x00,I2C_Command);
}

/**
 *¹¦ÄÜ£ºÐ´Êý¾Ý
 *²ÎÊý£ºI2C_Data ÐèÒªÐ´ÈëµÄÊý¾Ý
 *·µ»ØÖµ£ºvoid
 */
void WriteData(unsigned char I2C_Data)
{
		I2C_WriteByte(0x40,I2C_Data);
}

/**
 *¹¦ÄÜ£º³õÊ¼»¯OLED
 *²ÎÊý£ºvoid
 *·µ»ØÖµ£ºvoid
 */
void OLED_Init(void)
{
    	delay_ms(100);
		WriteCmd(0xAE); //display off
		WriteCmd(0x20);	//Set Memory Addressing Mode
		WriteCmd(0x10);	//00,Horizontal Addressing Mode;01,Vertical Addressing Mode;10,Page Addressing Mode (RESET);11,Invalid
		WriteCmd(0xb0);	//Set Page Start Address for Page Addressing Mode,0-7
		WriteCmd(0xc8);	//Set COM Output Scan Direction
		WriteCmd(0x00); //---set low column address
		WriteCmd(0x10); //---set high column address
		WriteCmd(0x40); //--set start line address
		WriteCmd(0x81); //--set contrast control register
		WriteCmd(0xff); //ÁÁ¶Èµ÷½Ú 0x00~0xff
		WriteCmd(0xa1); //--set segment re-map 0 to 127
		WriteCmd(0xa6); //--set normal display
		WriteCmd(0xa8); //--set multiplex ratio(1 to 64)
		WriteCmd(0x3F); //
		WriteCmd(0xa4); //0xa4,Output follows RAM content;0xa5,Output ignores RAM content
		WriteCmd(0xd3); //-set display offset
		WriteCmd(0x00); //-not offset
		WriteCmd(0xd5); //--set display clock divide ratio/oscillator frequency
		WriteCmd(0xf0); //--set divide ratio
		WriteCmd(0xd9); //--set pre-charge period
		WriteCmd(0x22); //
		WriteCmd(0xda); //--set com pins hardware configuration
		WriteCmd(0x12);
		WriteCmd(0xdb); //--set vcomh
		WriteCmd(0x20); //0x20,0.77xVcc
		WriteCmd(0x8d); //--set DC-DC enable
		WriteCmd(0x14); //
		WriteCmd(0xaf); //--turn on oled panel
}

/**
 *¹¦ÄÜ£ºÉèÖÃ×ø±ê
 *²ÎÊý£ºx xÖá£¬y yÖá
 *·µ»ØÖµ£ºvoid
 */
void OLED_SetPos(unsigned char x,unsigned char y)
{
		WriteCmd(0xb0 + y);
		WriteCmd((x&0xf0)>>4|0x10);
		WriteCmd((x&0x0f)|0x01);
}

/**
 *¹¦ÄÜ£ºÈ«ÆÁÌî³ä
 *²ÎÊý£ºFill_Data ÐèÒªÌî³äµÄÊý¾Ý
 *·µ»ØÖµ£ºvoid
 */
void OLED_Fill(unsigned char Fill_Data)
{
		unsigned char n;
		unsigned char m;

		for(m=0;m<8;m++)
		{
				WriteCmd(0xb0 + m);
				WriteCmd(0x00);
				WriteCmd(0x10);

				for(n=0;n<128;n++)
				{
						WriteData(Fill_Data);
				}
		}
}

/**
 *¹¦ÄÜ£ºÇåÆÁ
 *²ÎÊý£ºvoid
 *·µ»ØÖµ£ºvoid
 */
void OLED_CLS(void)
{
		OLED_Fill(0x00);
}

/**
 *¹¦ÄÜ£º¿ªÆôOLED
 *²ÎÊý£ºvoid
 *·µ»ØÖµ£ºvoid
 */
void OLED_ON(void)
{
		WriteCmd(0x8D); //ÉèÖÃµçºÉ±Ã
		WriteCmd(0x14); //¿ªÆôµçºÉ±Ã
		WriteCmd(0xAF); //¿ªÆôÏÔÊ¾
}

/**
 *¹¦ÄÜ£º¹Ø±ÕOLED
 *²ÎÊý£ºvoid
 *·µ»ØÖµ£ºvoid
 */
void OLED_OFF(void)
{
		WriteCmd(0x8D); //ÉèÖÃµçºÉ±Ã
		WriteCmd(0x10); //¹Ø±ÕµçºÉ±Ã
		WriteCmd(0xAE); //¹Ø±ÕÏÔÊ¾
}

void OLED_ShowStr(unsigned char x,unsigned y,unsigned char ch[],unsigned TextSize)
{
		unsigned char c = 0;
		unsigned char i = 0;
		unsigned char j = 0;

		switch(TextSize) //Ñ¡ÔñÄ£Ê½
		{
			case 1:
			{
					while(ch[j] != '\0') //ÅÐ¶ÏÊÇ·ñµ½´ï×îºóÒ»Î»
					{
							c = ch[j] - 32; //´óÐ¡Ð´×ª»»

							if(x > 126) //ÅÐ¶ÏÆÁÄ»ÊÇ·ñ·ÅµÃÏÂ,OLEDÊÇ128*8×Ö½Ú
							{
									x = 0;
									y++;
							}

							OLED_SetPos(x,y);//ÉèÖÃ×ø±ê

							for(i=0;i<6;i++)
							{
									WriteData(F6x8[c][i]);
							}

							x+=6;
							j++;
					}
			}break;

			case 2:
			{
					while(ch[j] != '\0')  //ÅÐ¶ÏÊÇ·ñµ½´ï×îºóÒ»Î»
					{
							c = ch[j] - 32;   //´óÐ¡Ð´×ª»»

							if(x > 120)       //ÅÐ¶ÏÆÁÄ»ÊÇ·ñ·ÅµÃÏÂ,OLEDÊÇ128*8×Ö½Ú
							{
									x = 0;
									y++;
							}

							OLED_SetPos(x,y); //ÉèÖÃ×ø±ê

							for(i=0;i<8;i++)  //ÒòÎªÊÇ16½øÖÆµÄËùÒÔ·ÖÎªÁ½¸ö8Î»À´Ð´£¬ÕâÊÇÉÏ°ë²¿·Ö
							{
									WriteData(F8X16[c*16+i]);
							}

							OLED_SetPos(x,y+1); //ÉèÖÃ×ø±ê Èç¹ûÕâÀïÉèÖÃµÄÊÇy²»ÊÇy+1»áµ¼ÖÂÏÔÊ¾µÄ×Ö·û´®Ö»ÏÔÊ¾Ò»°ë

							for(i=0;i<8;i++)  //Ìø×ªµ½ÏÂÒ»Ò³£¬ÕâÊÇÏÂ°ë²¿·Ö
							{
									WriteData(F8X16[c*16+i+8]);
							}

							x+=8;
							j++;

					}
			}break;

		}


}

void OLED_ShowCN(unsigned char x,unsigned y,unsigned char N)
{
		unsigned char i;
		unsigned int addr = 32*N;
		OLED_SetPos(x,y);

		for(i=0;i<16;i++)
		{
				WriteData(F16X16[addr]);
				addr += 1;
		}

		OLED_SetPos(x,y+1);
		for(i=0;i<16;i++)
		{
				WriteData(F16X16[addr]);
				addr += 1;
		}
}

void OLED_ShowMouMou(unsigned char x,unsigned char y,unsigned char N)
{
		unsigned char i;
		unsigned int addr = 32*N;
		OLED_SetPos(x,y);

		for(i=0;i<16;i++)
		{
				WriteData(MouMou[addr]);
				addr += 1;
		}

		OLED_SetPos(x,y+1);
		for(i=0;i<16;i++)
		{
				WriteData(MouMou[addr]);
				addr += 1;
		}

}

codetab.h

//unsigned char F16X16[] =
//{
//		0x10,0x60,0x02,0x8C,0x00,0x00,0xFE,0x92,0x92,0x92,0x92,0x92,0xFE,0x00,0x00,0x00,
//		0x04,0x04,0x7E,0x01,0x40,0x7E,0x42,0x42,0x7E,0x42,0x7E,0x42,0x42,0x7E,0x40,0x00,/*"ÎÂ¶È",0*/
//		0x00,0x00,0xFC,0x24,0x24,0x24,0xFC,0x25,0x26,0x24,0xFC,0x24,0x24,0x24,0x04,0x00,
//		0x40,0x30,0x8F,0x80,0x84,0x4C,0x55,0x25,0x25,0x25,0x55,0x4C,0x80,0x80,0x80,0x00,/*"Êª¶È",1*/
//};

unsigned char F16X16[] =
{
		0x00,0xFC,0x04,0x04,0xFC,0x00,0x10,0xD8,0x14,0x13,0xF0,0x14,0x18,0x30,0x00,0x00,
		0x00,0x0F,0x04,0x04,0x0F,0x08,0x0A,0x09,0x09,0x09,0xFF,0x09,0x09,0x09,0x08,0x00,/*"ßè",0*/
		0x00,0xFC,0x04,0x04,0xFC,0x00,0x10,0xD8,0x14,0x13,0xF0,0x14,0x18,0x30,0x00,0x00,
		0x00,0x0F,0x04,0x04,0x0F,0x08,0x0A,0x09,0x09,0x09,0xFF,0x09,0x09,0x09,0x08,0x00,/*"ßè",1*/
};

unsigned char MouMou[] =
{		0x00,0xFC,0x04,0x04,0xFC,0x00,0x10,0xD8,0x14,0x13,0xF0,0x14,0x18,0x30,0x00,0x00,
		0x00,0x0F,0x04,0x04,0x0F,0x08,0x0A,0x09,0x09,0x09,0xFF,0x09,0x09,0x09,0x08,0x00,/*"ßè",0*/
		0x00,0xFC,0x04,0x04,0xFC,0x00,0x10,0xD8,0x14,0x13,0xF0,0x14,0x18,0x30,0x00,0x00,
		0x00,0x0F,0x04,0x04,0x0F,0x08,0x0A,0x09,0x09,0x09,0xFF,0x09,0x09,0x09,0x08,0x00,/*"ßè",1*/
		0x00,0xFC,0x04,0x04,0xFC,0x00,0x10,0xD8,0x14,0x13,0xF0,0x14,0x18,0x30,0x00,0x00,
		0x00,0x0F,0x04,0x04,0x0F,0x08,0x0A,0x09,0x09,0x09,0xFF,0x09,0x09,0x09,0x08,0x00,/*"ßè",2*/};

const unsigned char F6x8[][6] =
{
	0x00, 0x00, 0x00, 0x00, 0x00, 0x00,// sp
	0x00, 0x00, 0x00, 0x2f, 0x00, 0x00,// !
	0x00, 0x00, 0x07, 0x00, 0x07, 0x00,// "
	0x00, 0x14, 0x7f, 0x14, 0x7f, 0x14,// #
	0x00, 0x24, 0x2a, 0x7f, 0x2a, 0x12,// $
	0x00, 0x62, 0x64, 0x08, 0x13, 0x23,// %
	0x00, 0x36, 0x49, 0x55, 0x22, 0x50,// &
	0x00, 0x00, 0x05, 0x03, 0x00, 0x00,// '
	0x00, 0x00, 0x1c, 0x22, 0x41, 0x00,// (
	0x00, 0x00, 0x41, 0x22, 0x1c, 0x00,// )
	0x00, 0x14, 0x08, 0x3E, 0x08, 0x14,// *
	0x00, 0x08, 0x08, 0x3E, 0x08, 0x08,// +
	0x00, 0x00, 0x00, 0xA0, 0x60, 0x00,// ,
	0x00, 0x08, 0x08, 0x08, 0x08, 0x08,// -
	0x00, 0x00, 0x60, 0x60, 0x00, 0x00,// .
	0x00, 0x20, 0x10, 0x08, 0x04, 0x02,// /
	0x00, 0x3E, 0x51, 0x49, 0x45, 0x3E,// 0
	0x00, 0x00, 0x42, 0x7F, 0x40, 0x00,// 1
	0x00, 0x42, 0x61, 0x51, 0x49, 0x46,// 2
	0x00, 0x21, 0x41, 0x45, 0x4B, 0x31,// 3
	0x00, 0x18, 0x14, 0x12, 0x7F, 0x10,// 4
	0x00, 0x27, 0x45, 0x45, 0x45, 0x39,// 5
	0x00, 0x3C, 0x4A, 0x49, 0x49, 0x30,// 6
	0x00, 0x01, 0x71, 0x09, 0x05, 0x03,// 7
	0x00, 0x36, 0x49, 0x49, 0x49, 0x36,// 8
	0x00, 0x06, 0x49, 0x49, 0x29, 0x1E,// 9
	0x00, 0x00, 0x36, 0x36, 0x00, 0x00,// :
	0x00, 0x00, 0x56, 0x36, 0x00, 0x00,// ;
	0x00, 0x08, 0x14, 0x22, 0x41, 0x00,// <
	0x00, 0x14, 0x14, 0x14, 0x14, 0x14,// =
	0x00, 0x00, 0x41, 0x22, 0x14, 0x08,// >
	0x00, 0x02, 0x01, 0x51, 0x09, 0x06,// ?
	0x00, 0x32, 0x49, 0x59, 0x51, 0x3E,// @
	0x00, 0x7C, 0x12, 0x11, 0x12, 0x7C,// A
	0x00, 0x7F, 0x49, 0x49, 0x49, 0x36,// B
	0x00, 0x3E, 0x41, 0x41, 0x41, 0x22,// C
	0x00, 0x7F, 0x41, 0x41, 0x22, 0x1C,// D
	0x00, 0x7F, 0x49, 0x49, 0x49, 0x41,// E
	0x00, 0x7F, 0x09, 0x09, 0x09, 0x01,// F
	0x00, 0x3E, 0x41, 0x49, 0x49, 0x7A,// G
	0x00, 0x7F, 0x08, 0x08, 0x08, 0x7F,// H
	0x00, 0x00, 0x41, 0x7F, 0x41, 0x00,// I
	0x00, 0x20, 0x40, 0x41, 0x3F, 0x01,// J
	0x00, 0x7F, 0x08, 0x14, 0x22, 0x41,// K
	0x00, 0x7F, 0x40, 0x40, 0x40, 0x40,// L
	0x00, 0x7F, 0x02, 0x0C, 0x02, 0x7F,// M
	0x00, 0x7F, 0x04, 0x08, 0x10, 0x7F,// N
	0x00, 0x3E, 0x41, 0x41, 0x41, 0x3E,// O
	0x00, 0x7F, 0x09, 0x09, 0x09, 0x06,// P
	0x00, 0x3E, 0x41, 0x51, 0x21, 0x5E,// Q
	0x00, 0x7F, 0x09, 0x19, 0x29, 0x46,// R
	0x00, 0x46, 0x49, 0x49, 0x49, 0x31,// S
	0x00, 0x01, 0x01, 0x7F, 0x01, 0x01,// T
	0x00, 0x3F, 0x40, 0x40, 0x40, 0x3F,// U
	0x00, 0x1F, 0x20, 0x40, 0x20, 0x1F,// V
	0x00, 0x3F, 0x40, 0x38, 0x40, 0x3F,// W
	0x00, 0x63, 0x14, 0x08, 0x14, 0x63,// X
	0x00, 0x07, 0x08, 0x70, 0x08, 0x07,// Y
	0x00, 0x61, 0x51, 0x49, 0x45, 0x43,// Z
	0x00, 0x00, 0x7F, 0x41, 0x41, 0x00,// [
	0x00, 0x55, 0x2A, 0x55, 0x2A, 0x55,// 55
	0x00, 0x00, 0x41, 0x41, 0x7F, 0x00,// ]
	0x00, 0x04, 0x02, 0x01, 0x02, 0x04,// ^
	0x00, 0x40, 0x40, 0x40, 0x40, 0x40,// _
	0x00, 0x00, 0x01, 0x02, 0x04, 0x00,// '
	0x00, 0x20, 0x54, 0x54, 0x54, 0x78,// a
	0x00, 0x7F, 0x48, 0x44, 0x44, 0x38,// b
	0x00, 0x38, 0x44, 0x44, 0x44, 0x20,// c
	0x00, 0x38, 0x44, 0x44, 0x48, 0x7F,// d
	0x00, 0x38, 0x54, 0x54, 0x54, 0x18,// e
	0x00, 0x08, 0x7E, 0x09, 0x01, 0x02,// f
	0x00, 0x18, 0xA4, 0xA4, 0xA4, 0x7C,// g
	0x00, 0x7F, 0x08, 0x04, 0x04, 0x78,// h
	0x00, 0x00, 0x44, 0x7D, 0x40, 0x00,// i
	0x00, 0x40, 0x80, 0x84, 0x7D, 0x00,// j
	0x00, 0x7F, 0x10, 0x28, 0x44, 0x00,// k
	0x00, 0x00, 0x41, 0x7F, 0x40, 0x00,// l
	0x00, 0x7C, 0x04, 0x18, 0x04, 0x78,// m
	0x00, 0x7C, 0x08, 0x04, 0x04, 0x78,// n
	0x00, 0x38, 0x44, 0x44, 0x44, 0x38,// o
	0x00, 0xFC, 0x24, 0x24, 0x24, 0x18,// p
	0x00, 0x18, 0x24, 0x24, 0x18, 0xFC,// q
	0x00, 0x7C, 0x08, 0x04, 0x04, 0x08,// r
	0x00, 0x48, 0x54, 0x54, 0x54, 0x20,// s
	0x00, 0x04, 0x3F, 0x44, 0x40, 0x20,// t
	0x00, 0x3C, 0x40, 0x40, 0x20, 0x7C,// u
	0x00, 0x1C, 0x20, 0x40, 0x20, 0x1C,// v
	0x00, 0x3C, 0x40, 0x30, 0x40, 0x3C,// w
	0x00, 0x44, 0x28, 0x10, 0x28, 0x44,// x
	0x00, 0x1C, 0xA0, 0xA0, 0xA0, 0x7C,// y
	0x00, 0x44, 0x64, 0x54, 0x4C, 0x44,// z
	0x14, 0x14, 0x14, 0x14, 0x14, 0x14,// horiz lines
};
const unsigned char F8X16[]=
{
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,// 0
  0x00,0x00,0x00,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x33,0x30,0x00,0x00,0x00,//! 1
  0x00,0x10,0x0C,0x06,0x10,0x0C,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//" 2
  0x40,0xC0,0x78,0x40,0xC0,0x78,0x40,0x00,0x04,0x3F,0x04,0x04,0x3F,0x04,0x04,0x00,//# 3
  0x00,0x70,0x88,0xFC,0x08,0x30,0x00,0x00,0x00,0x18,0x20,0xFF,0x21,0x1E,0x00,0x00,//$ 4
  0xF0,0x08,0xF0,0x00,0xE0,0x18,0x00,0x00,0x00,0x21,0x1C,0x03,0x1E,0x21,0x1E,0x00,//% 5
  0x00,0xF0,0x08,0x88,0x70,0x00,0x00,0x00,0x1E,0x21,0x23,0x24,0x19,0x27,0x21,0x10,//& 6
  0x10,0x16,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//' 7
  0x00,0x00,0x00,0xE0,0x18,0x04,0x02,0x00,0x00,0x00,0x00,0x07,0x18,0x20,0x40,0x00,//( 8
  0x00,0x02,0x04,0x18,0xE0,0x00,0x00,0x00,0x00,0x40,0x20,0x18,0x07,0x00,0x00,0x00,//) 9
  0x40,0x40,0x80,0xF0,0x80,0x40,0x40,0x00,0x02,0x02,0x01,0x0F,0x01,0x02,0x02,0x00,//* 10
  0x00,0x00,0x00,0xF0,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x1F,0x01,0x01,0x01,0x00,//+ 11
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xB0,0x70,0x00,0x00,0x00,0x00,0x00,//, 12
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x01,0x01,0x01,0x01,//- 13
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,0x00,0x00,//. 14
  0x00,0x00,0x00,0x00,0x80,0x60,0x18,0x04,0x00,0x60,0x18,0x06,0x01,0x00,0x00,0x00,/// 15
  0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x0F,0x10,0x20,0x20,0x10,0x0F,0x00,//0 16
  0x00,0x10,0x10,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//1 17
  0x00,0x70,0x08,0x08,0x08,0x88,0x70,0x00,0x00,0x30,0x28,0x24,0x22,0x21,0x30,0x00,//2 18
  0x00,0x30,0x08,0x88,0x88,0x48,0x30,0x00,0x00,0x18,0x20,0x20,0x20,0x11,0x0E,0x00,//3 19
  0x00,0x00,0xC0,0x20,0x10,0xF8,0x00,0x00,0x00,0x07,0x04,0x24,0x24,0x3F,0x24,0x00,//4 20
  0x00,0xF8,0x08,0x88,0x88,0x08,0x08,0x00,0x00,0x19,0x21,0x20,0x20,0x11,0x0E,0x00,//5 21
  0x00,0xE0,0x10,0x88,0x88,0x18,0x00,0x00,0x00,0x0F,0x11,0x20,0x20,0x11,0x0E,0x00,//6 22
  0x00,0x38,0x08,0x08,0xC8,0x38,0x08,0x00,0x00,0x00,0x00,0x3F,0x00,0x00,0x00,0x00,//7 23
  0x00,0x70,0x88,0x08,0x08,0x88,0x70,0x00,0x00,0x1C,0x22,0x21,0x21,0x22,0x1C,0x00,//8 24
  0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x00,0x31,0x22,0x22,0x11,0x0F,0x00,//9 25
  0x00,0x00,0x00,0xC0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,//: 26
  0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x60,0x00,0x00,0x00,0x00,//; 27
  0x00,0x00,0x80,0x40,0x20,0x10,0x08,0x00,0x00,0x01,0x02,0x04,0x08,0x10,0x20,0x00,//< 28
  0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x00,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x00,//= 29
  0x00,0x08,0x10,0x20,0x40,0x80,0x00,0x00,0x00,0x20,0x10,0x08,0x04,0x02,0x01,0x00,//> 30
  0x00,0x70,0x48,0x08,0x08,0x08,0xF0,0x00,0x00,0x00,0x00,0x30,0x36,0x01,0x00,0x00,//? 31
  0xC0,0x30,0xC8,0x28,0xE8,0x10,0xE0,0x00,0x07,0x18,0x27,0x24,0x23,0x14,0x0B,0x00,//@ 32
  0x00,0x00,0xC0,0x38,0xE0,0x00,0x00,0x00,0x20,0x3C,0x23,0x02,0x02,0x27,0x38,0x20,//A 33
  0x08,0xF8,0x88,0x88,0x88,0x70,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x11,0x0E,0x00,//B 34
  0xC0,0x30,0x08,0x08,0x08,0x08,0x38,0x00,0x07,0x18,0x20,0x20,0x20,0x10,0x08,0x00,//C 35
  0x08,0xF8,0x08,0x08,0x08,0x10,0xE0,0x00,0x20,0x3F,0x20,0x20,0x20,0x10,0x0F,0x00,//D 36
  0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x20,0x23,0x20,0x18,0x00,//E 37
  0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x00,0x03,0x00,0x00,0x00,//F 38
  0xC0,0x30,0x08,0x08,0x08,0x38,0x00,0x00,0x07,0x18,0x20,0x20,0x22,0x1E,0x02,0x00,//G 39
  0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x20,0x3F,0x21,0x01,0x01,0x21,0x3F,0x20,//H 40
  0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//I 41
  0x00,0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,0x00,//J 42
  0x08,0xF8,0x88,0xC0,0x28,0x18,0x08,0x00,0x20,0x3F,0x20,0x01,0x26,0x38,0x20,0x00,//K 43
  0x08,0xF8,0x08,0x00,0x00,0x00,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x20,0x30,0x00,//L 44
  0x08,0xF8,0xF8,0x00,0xF8,0xF8,0x08,0x00,0x20,0x3F,0x00,0x3F,0x00,0x3F,0x20,0x00,//M 45
  0x08,0xF8,0x30,0xC0,0x00,0x08,0xF8,0x08,0x20,0x3F,0x20,0x00,0x07,0x18,0x3F,0x00,//N 46
  0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x10,0x20,0x20,0x20,0x10,0x0F,0x00,//O 47
  0x08,0xF8,0x08,0x08,0x08,0x08,0xF0,0x00,0x20,0x3F,0x21,0x01,0x01,0x01,0x00,0x00,//P 48
  0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x18,0x24,0x24,0x38,0x50,0x4F,0x00,//Q 49
  0x08,0xF8,0x88,0x88,0x88,0x88,0x70,0x00,0x20,0x3F,0x20,0x00,0x03,0x0C,0x30,0x20,//R 50
  0x00,0x70,0x88,0x08,0x08,0x08,0x38,0x00,0x00,0x38,0x20,0x21,0x21,0x22,0x1C,0x00,//S 51
  0x18,0x08,0x08,0xF8,0x08,0x08,0x18,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,//T 52
  0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,//U 53
  0x08,0x78,0x88,0x00,0x00,0xC8,0x38,0x08,0x00,0x00,0x07,0x38,0x0E,0x01,0x00,0x00,//V 54
  0xF8,0x08,0x00,0xF8,0x00,0x08,0xF8,0x00,0x03,0x3C,0x07,0x00,0x07,0x3C,0x03,0x00,//W 55
  0x08,0x18,0x68,0x80,0x80,0x68,0x18,0x08,0x20,0x30,0x2C,0x03,0x03,0x2C,0x30,0x20,//X 56
  0x08,0x38,0xC8,0x00,0xC8,0x38,0x08,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,//Y 57
  0x10,0x08,0x08,0x08,0xC8,0x38,0x08,0x00,0x20,0x38,0x26,0x21,0x20,0x20,0x18,0x00,//Z 58
  0x00,0x00,0x00,0xFE,0x02,0x02,0x02,0x00,0x00,0x00,0x00,0x7F,0x40,0x40,0x40,0x00,//[ 59
  0x00,0x0C,0x30,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x06,0x38,0xC0,0x00,//\ 60
  0x00,0x02,0x02,0x02,0xFE,0x00,0x00,0x00,0x00,0x40,0x40,0x40,0x7F,0x00,0x00,0x00,//] 61
  0x00,0x00,0x04,0x02,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//^ 62
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,//_ 63
  0x00,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//` 64
  0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x19,0x24,0x22,0x22,0x22,0x3F,0x20,//a 65
  0x08,0xF8,0x00,0x80,0x80,0x00,0x00,0x00,0x00,0x3F,0x11,0x20,0x20,0x11,0x0E,0x00,//b 66
  0x00,0x00,0x00,0x80,0x80,0x80,0x00,0x00,0x00,0x0E,0x11,0x20,0x20,0x20,0x11,0x00,//c 67
  0x00,0x00,0x00,0x80,0x80,0x88,0xF8,0x00,0x00,0x0E,0x11,0x20,0x20,0x10,0x3F,0x20,//d 68
  0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x22,0x22,0x22,0x22,0x13,0x00,//e 69
  0x00,0x80,0x80,0xF0,0x88,0x88,0x88,0x18,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//f 70
  0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x6B,0x94,0x94,0x94,0x93,0x60,0x00,//g 71
  0x08,0xF8,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,//h 72
  0x00,0x80,0x98,0x98,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//i 73
  0x00,0x00,0x00,0x80,0x98,0x98,0x00,0x00,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,//j 74
  0x08,0xF8,0x00,0x00,0x80,0x80,0x80,0x00,0x20,0x3F,0x24,0x02,0x2D,0x30,0x20,0x00,//k 75
  0x00,0x08,0x08,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//l 76
  0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x20,0x3F,0x20,0x00,0x3F,0x20,0x00,0x3F,//m 77
  0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,//n 78
  0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,//o 79
  0x80,0x80,0x00,0x80,0x80,0x00,0x00,0x00,0x80,0xFF,0xA1,0x20,0x20,0x11,0x0E,0x00,//p 80
  0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x0E,0x11,0x20,0x20,0xA0,0xFF,0x80,//q 81
  0x80,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x20,0x20,0x3F,0x21,0x20,0x00,0x01,0x00,//r 82
  0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x33,0x24,0x24,0x24,0x24,0x19,0x00,//s 83
  0x00,0x80,0x80,0xE0,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x1F,0x20,0x20,0x00,0x00,//t 84
  0x80,0x80,0x00,0x00,0x00,0x80,0x80,0x00,0x00,0x1F,0x20,0x20,0x20,0x10,0x3F,0x20,//u 85
  0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x00,0x01,0x0E,0x30,0x08,0x06,0x01,0x00,//v 86
  0x80,0x80,0x00,0x80,0x00,0x80,0x80,0x80,0x0F,0x30,0x0C,0x03,0x0C,0x30,0x0F,0x00,//w 87
  0x00,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x31,0x2E,0x0E,0x31,0x20,0x00,//x 88
  0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x80,0x81,0x8E,0x70,0x18,0x06,0x01,0x00,//y 89
  0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x21,0x30,0x2C,0x22,0x21,0x30,0x00,//z 90
  0x00,0x00,0x00,0x00,0x80,0x7C,0x02,0x02,0x00,0x00,0x00,0x00,0x00,0x3F,0x40,0x40,//{ 91
  0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,//| 92
  0x00,0x02,0x02,0x7C,0x80,0x00,0x00,0x00,0x00,0x40,0x40,0x3F,0x00,0x00,0x00,0x00,//} 93
  0x00,0x06,0x01,0x01,0x02,0x02,0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//~ 94
};

unsigned char BMP1[] =
{
 0X32,0X01,0X00,0X80,0X00,0X3B,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X80,0X80,0X80,0X80,0X80,0X80,0XC0,0XC0,
0XC0,0XC0,0XC0,0XC0,0XC0,0XE0,0X60,0X60,0X60,0X60,0X70,0X70,0X30,0X30,0X30,0X30,
0X38,0X38,0X60,0X40,0XC0,0XC0,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X80,0X80,0X80,0X80,0XC0,0XC0,0XC0,0X40,0X40,
0X60,0X60,0X20,0X20,0X30,0X30,0X10,0X10,0X18,0X18,0X18,0X0C,0X0C,0X0C,0X0E,0X0E,
0X0F,0X87,0XA7,0XA7,0X87,0XDD,0XDD,0XDD,0XDD,0XCD,0XCD,0XCD,0XC9,0XC1,0X41,0X51,
0X11,0X21,0X21,0X09,0X09,0X0D,0X2D,0X25,0X07,0X17,0X17,0X17,0X13,0X1B,0X09,0X09,
0X0C,0X0C,0X0C,0X0E,0X0F,0X0F,0X0F,0X06,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X80,0X00,0X40,0X40,0X20,
0X20,0X20,0X10,0X10,0X18,0X08,0X0F,0X07,0X87,0XC5,0XC1,0X40,0X40,0X40,0X60,0X60,
0X60,0X60,0XF0,0XFC,0XFC,0XFC,0XBC,0XBE,0XBE,0X3E,0X3E,0X3E,0X1E,0X1F,0X0F,0X03,
0X13,0X11,0X11,0X08,0X08,0X0C,0X0C,0X06,0X17,0X17,0X13,0X1B,0X19,0X18,0X18,0X18,
0X18,0X38,0X3C,0X3C,0XFC,0XDC,0XCC,0X84,0X84,0X84,0X04,0X06,0X02,0X02,0X02,0X02,
0X02,0X02,0X02,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X60,0XE0,0XE0,0XE0,0XE0,0XF0,0X70,0X31,0X10,0X10,0X10,0X10,0X30,0X10,
0X08,0X00,0X00,0X00,0X00,0X00,0X00,0X11,0X00,0X20,0X60,0X40,0XC0,0XC0,0XC0,0X90,
0X90,0X91,0X91,0XB1,0XB1,0XA1,0XA0,0XA0,0XA0,0XA0,0XE0,0XE0,0XE0,0XC0,0X40,0X00,
0X20,0X20,0X00,0X00,0X00,0X00,0X00,0X00,0X02,0X02,0X02,0X02,0X02,0X02,0X02,0X02,
0X02,0X03,0X03,0X03,0X03,0X03,0X03,0X03,0X03,0X03,0X01,0X01,0X01,0X01,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X0E,0X3F,0X63,0X81,0X00,0X00,0X00,0X00,0X0C,0X0C,0X0C,0X14,0X14,
0X14,0X54,0X54,0X54,0X54,0X54,0X14,0X14,0X14,0X1C,0X0C,0X08,0X08,0X08,0X00,0X01,
0X01,0X01,0X01,0X01,0X83,0X83,0X83,0X83,0X03,0X12,0X12,0X12,0X10,0X10,0X10,0X10,
0X30,0X30,0X30,0X32,0X72,0XF2,0XF2,0XF2,0XF2,0X32,0X32,0X32,0X32,0X22,0X22,0X26,
0X26,0X26,0X06,0X04,0X4C,0X4C,0X0C,0X0C,0X18,0X18,0X18,0X18,0X30,0X30,0X30,0X20,
0X20,0X20,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X80,0X00,0X00,0X02,0X02,0X02,0X00,
0X00,0X00,0X00,0X00,0X01,0X01,0X01,0X01,0X03,0X27,0X43,0X43,0X83,0X83,0X83,0X82,
0X83,0X83,0X83,0X83,0X83,0X83,0X83,0X83,0XC3,0X43,0X42,0X42,0X40,0X40,0X60,0X60,
0X60,0X60,0X60,0X68,0X70,0X71,0X61,0X63,0X43,0X03,0X03,0X03,0X03,0X02,0X02,0X02,
0X02,0X02,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X01,0X03,0X06,0X04,0X08,0X08,0X10,
0X10,0X10,0X20,0X20,0X20,0X30,0X30,0X70,0X60,0X60,0X70,0X70,0X70,0X38,0X38,0X19,
0X0D,0X0D,0X0F,0X07,0X03,0X03,0X01,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
};

SysTick.h

#include "stm32f10x.h"
void ms_delay(uint32_t ms);
void us_delay(uint32_t us);

SysTick.c

#include "stm32f10x.h"
#include "SysTick.h"
/*
		ÏµÍ³¶¨Ê±Æ÷ÌØµã£º
		Ö»ÄÜµÝ¼õ£¬Èç¹û¶¨ÒåµÄÊÇ72000
		ÄÇ¾Í´Ó72000¿ªÊ¼µÝ¼õµ½0£¬ÎªÒ»¸öÖÜÆÚ
		ËùÒÔÖ»ÐèÒªÅÐ¶ÏÊÇ·ñ¼õµ½1

		ÈçºÎÅÐ¶Ï£¿
		¿´COUNTFLAG¼Ä´æÆ÷£¬Ò²¾ÍÊÇSysTick->CTRL

*/
void ms_delay(uint32_t ms)
{
		uint32_t i;
		SysTick_Config(72000);//Ñ»·Ò»´Î1ms

		for(i=0;i<ms;i++)//ÒªÑ»·¶àÉÙms
		{
				while( !((SysTick->CTRL)&(1<<16)) );//ÅÐ¶ÏSysTickÊÇ·ñµ½0£¬µ½0¸ÃÎ»Îª1
																					//!(1&1)Ìø³öÑ»·
																					//ÎªÊ²Ã´×óÒÆ16Î»ÄØ£¬ÒòÎªCTRLÊÇ16Î»µÄ?
																				  //¿´¿ØÖÆ¼°×´Ì¬¼Ä´æÆ÷µÄÍ¼Ð´ÁË¡£
		}
				SysTick->CTRL &=~ SysTick_CTRL_ENABLE_Msk;

}

void us_delay(uint32_t us)
{
		uint32_t i;
		SysTick_Config(72);//Ñ»·Ò»´Î1us

		for(i=0;i<us;i++)//ÒªÑ»·¶àÉÙus
		{
				while( !((SysTick->CTRL)&(1<<16)) );
		}
				SysTick->CTRL &=~ SysTick_CTRL_ENABLE_Msk;

}

遇到的问题

问题一，oled显示花屏

看下图，oled初始化的时候出现的
在这里插入图片描述

两个延时函数，第一个不会花屏，第二个延时函数会花屏，具体原因不清楚。

问题二，oled显示错误

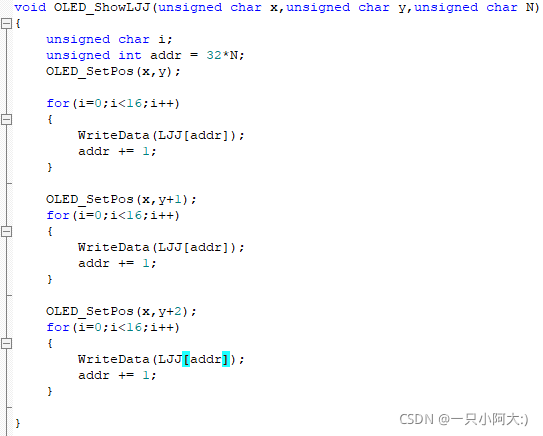

因为对代码不熟悉，想让他打印三个字，而不是两个字，我仿写了个OLED_ShowMouMou(如下图),然后发现为啥我显示了三个字，还多显示了三个哞字的上班部分，第三个哞字的上半部分乱码。
在这里插入图片描述
后面我试了试四个for然后发现，第二行下班部分就补齐了，显示了六个字，因为一个汉字需要16*16两行，那么只需要两个for，我当时以为for跟字数有关，所以导致了显示问题。

看下图字库
在这里插入图片描述
可以发现一个字两行，一行是1616，一行有16列，没个都是16进制数，所以一行是1616

张士玉小黑屋

当前位置：首页 » 《休闲阅读》 » 正文

STM32 硬件IIC OLED_一只小阿大:)的博客

9 人参与 2022年02月13日 12:34 分类 : 《休闲阅读》评论

目录

OLED屏幕

OLED屏幕特点

OLED屏幕接线说明

OLED屏幕显存

OLED屏幕原理

OLED屏幕常用指令

OLED屏幕字模软件的使用

代码

main.c

oled.h

oled.c

codetab.h

SysTick.h

SysTick.c

遇到的问题

问题一，oled显示花屏

问题二，oled显示错误

评论（0）

赞助本站

最新文章

张士玉小黑屋

当前位置：首页 » 《休闲阅读》 » 正文

STM32 硬件IIC OLED_一只小阿大:)的博客

9 人参与 2022年02月13日 12:34 分类 : 《休闲阅读》 评论

目录

OLED屏幕

OLED屏幕特点

OLED屏幕接线说明

OLED屏幕显存

OLED屏幕原理

OLED屏幕常用指令

OLED屏幕字模软件的使用

代码

main.c

oled.h

oled.c

codetab.h

SysTick.h

SysTick.c

遇到的问题

问题一，oled显示花屏

问题二，oled显示错误

评论（0） 赞助本站

最新文章

9 人参与 2022年02月13日 12:34 分类 : 《休闲阅读》评论

评论（0）

赞助本站
